String Schema
Carrier Element
String Schema > FlightLegResponseType Complex Type : Carrier Element
Namespace http://string.drv.de/xmlschema/string
Type
AirlineResponseTypes Complex Type

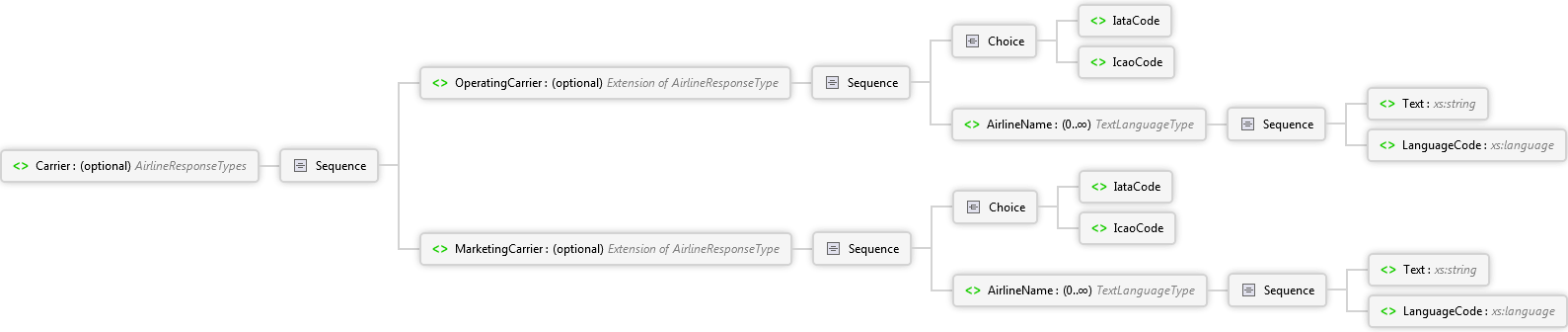

Diagram
LanguageCode Element Text Element Sequence AirlineName Element IcaoCode Element IataCode Element Choice Sequence MarketingCarrier Element LanguageCode Element Text Element Sequence AirlineName Element IcaoCode Element IataCode Element Choice Sequence OperatingCarrier Element Sequence Carrier Element
Overview
Carrier optional AirlineResponseTypes Complex Type
Sequence
OperatingCarrier optional AirlineResponseType Complex Type
Sequence
Choice
AirlineName 0..∞ TextLanguageType Complex Type
Sequence
Text xs:string
Text in the given language
LanguageCode xs:language
ISO language code: either XX or XX_yy
MarketingCarrier optional AirlineResponseType Complex Type
Sequence
Choice
AirlineName 0..∞ TextLanguageType Complex Type
Sequence
Text xs:string
Text in the given language
LanguageCode xs:language
ISO language code: either XX or XX_yy
Source
<xs:element name="Carrier" type="AirlineResponseTypes" nillable="true" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
See Also
FlightLegResponseType Complex Type | String Schema
